we use HDF5 format to store large amounts of simulation results.
Our h5 files can contain many folders and many records.
When reading the results with our post-processing software, the error shown below occurs.
The error is not 100% reproducible and occurs randomly. Sometimes it works, sometimes 99 out of 100 attempts fail.
We compile the C / C++ sources from the HDF homepage with msvc-14.1 and use them in our C / C++ application.
Any help or hints on a solution would be appreciated.
Many thanks!
HDF5-DIAG: Error detected in HDF5 (1.8.16) thread 0:
#000: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5O.c line 657 in H5Oget_info_by_name(): object not found
major: Symbol table
minor: Object not found
#001: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Gloc.c line 747 in H5G_loc_info(): can't find object
major: Symbol table
minor: Object not found
#002: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Gtraverse.c line 861 in H5G_traverse(): internal path traversal failed
major: Symbol table
minor: Object not found
#003: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Gtraverse.c line 641 in H5G_traverse_real(): traversal operator failed
major: Symbol table
minor: Callback failed
#004: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Gloc.c line 702 in H5G_loc_info_cb(): can't get object info
major: Symbol table
minor: Can't get value
#005: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5O.c line 2792 in H5O_get_info(): unable to load object header
major: Object header
minor: Unable to protect metadata
#006: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5O.c line 1685 in H5O_protect(): unable to load object header
major: Object header
minor: Unable to protect metadata
#007: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5AC.c line 1262 in H5AC_protect(): H5C_protect() failed.
major: Object cache
minor: Unable to protect metadata
#008: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5C.c line 3574 in H5C_protect(): can't load entry
major: Object cache
minor: Unable to load metadata into cache
#009: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5C.c line 7954 in H5C_load_entry(): unable to load entry
major: Object cache
minor: Unable to load metadata into cache
#010: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Ocache.c line 328 in H5O_load(): unable to read object header data
major: Object header
minor: Read failed
#011: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Fio.c line 120 in H5F_block_read(): read through metadata accumulator failed
major: Low-level I/O
minor: Read failed
#012: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5Faccum.c line 214 in H5F__accum_read(): driver read request failed
major: Low-level I/O
minor: Read failed
#013: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5FDint.c line 211 in H5FD_read(): driver read request failed
major: Virtual File Layer
minor: Read failed
#014: D:\Third_Party\CMake-hdf5-1.8.16d\hdf5-1.8.16\src\H5FDsec2.c line 707 in H5FD_sec2_read(): file read failed: time = Thu Mar 17 08:50:36 2022
, filename = 'D:/projects/results.h5', file descriptor = 3, errno = 22, error message = 'Invalid argument', buf = 000002185665CFF8, total read size = 328, bytes this sub-read = 328, bytes actually read = 18446744073709551615, offset = 81288
major: Low-level I/O
minor: Read failed
After we upgraded to a newer version, the non-ASCII characters in filenames no longer worked, so we switched back to a version without this problem. However, this did not solve the reading problem.
The error is not file, hardware, or user specific. It tends to occur more often with large files.
It occurs on different Windows machines. There is no Linux version of our software. We have tested it only on Windows.
The error seems to occur randomly, even with the same file or data set.
At least we haven’t found out any particular pattern regarding, for example, the path.
For files that fit into available RAM, could you try to reproduce the error with the core VFD? Instead of passing H5P_DEFAULT as the file access property list, create a file access property list fapl via hid_t fapl = H5Pcreate(H5P_FILE_ACCESS) and set H5Pset_fapl_core(fapl, 4194304, 1)? That way the file system would be out of the way, and we’d get another data point. OK?
I have tried it out. It actually seems to work. The error no longer occurs, even with large files.
As expected, the memory requirements of the application become much larger.
Do you see any way to get it to work without loading the entire file?
Thank you for trying this & finally some good news. I think we still want to get to the bottom of the original problem, but let’s see if we can find a tentative solution.
What portion of the data in a file do you usually read? (<30%, <60%, most of it?)
Are you only reading data or are you making updates, or writing new datasets?
Do your files have the same profile (the same structure and layout)? In other words, are the HDF5 path names and attribute names predictable, rather than discovering them at runtime?
Are the data that you are reading compressed or otherwise (HDF5-)filtered?
Our routines read only small amounts of data at a time per request, often probably only 1% of the data. Sometimes there can be a lot of small requests in a row to the h5 file. We have asked ourselves before if this can cause problems.
We have a separate read and write interface. The problem occurs only when reading. We open the HDF file only to read data when the problem occurs.
The files all follow the same basic structure. Not all files always contain all possible data.
The reader always checks which data is present. There can also be failed read attempts, which is OK and then handled.
Names of paths and attributes are predictable. They are not random.
On the topic of filtering, I need to ask. I will send information as soon as I know.
We use the zlib compression that is part of the HDF download package.
I sent an example file to the support E-Mail. Maybe you can see there if something is off regarding compression.
One additional remark:
Sometimes even the first read attempt of a data set fails. These data sets, that are read at the beginning, are always present and have identical structure.

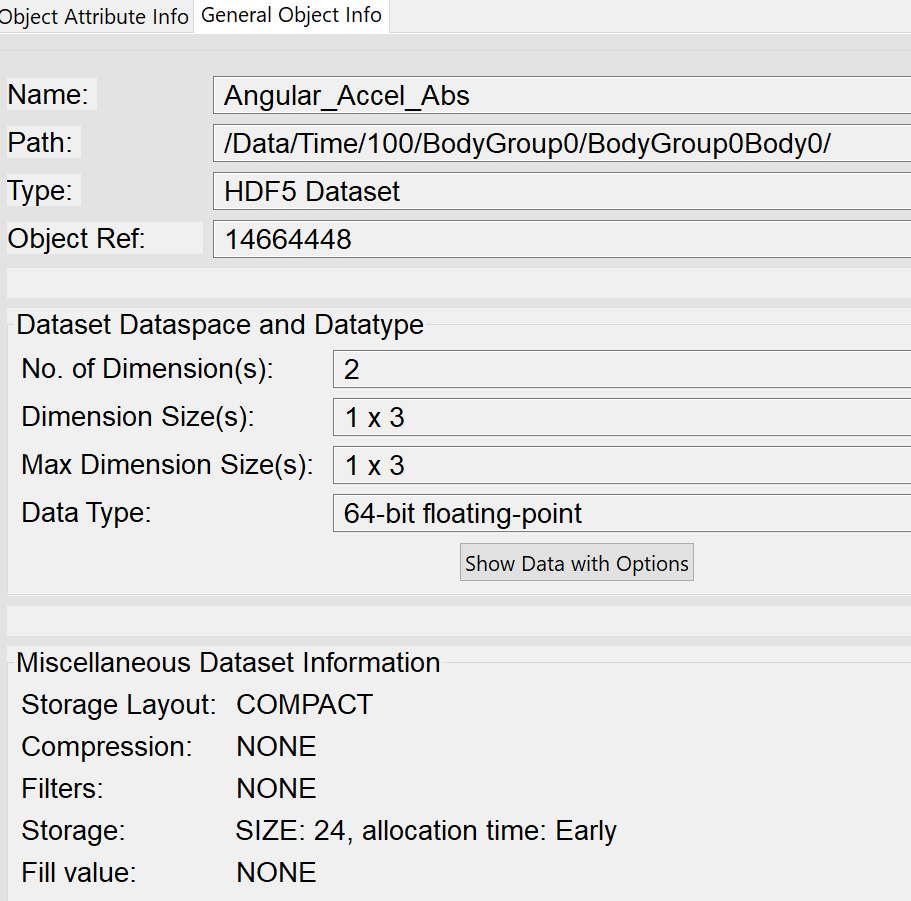

Does the problem occur only with a specific layout? For example, your screenshot shows a dataset w/ compact layout, where there is no compression. Or does it occur only with datasets where you use (zlib) compression?
I checked the miscellaneous data set information. Filters, compression and fill value are always NONE.
I haven´t programmed this part myself, so I was not sure.
The storage layout is COMPACT, CHUNKED or CONTIGUOUS. However, I remember read problems with all of these data sets.
I just checked w/ our help desk, but it appears that we haven’t received any file samples. Would you mind sending it again to help@hdfgroup.org? Thanks, G.
We use the software only on normal Windows PCs. The HDF files are read from the local hard drive. We do not use anything unusual. I do not exclude that the corporate IT department of our company sets some settings. But I think it is unlikely.
Since the problem occurs with all users, the suspicion so far has been rather that it has something to do with the software. For example, options set when opening data sets. Could you think of something that could cause such behavior?
